Snaplock Stainless Steel Quick Release Clamps
Detail Information

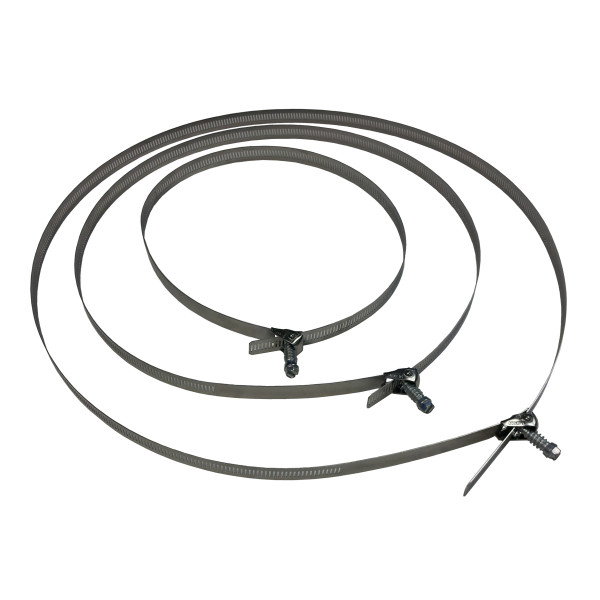

Snaplock Stainless Steel Quick Release Clamps
Easy install, fast removal
Parts for Banner Pole Brackets, Filter Bags,HVAC systems
IDEAL Clamps Snaplock or Snaplock Clamps 56 Series
9/16" Wide Band, 5/16" Hex Head Slotted
Finish: Silver or Black Power Coating
Size | Range | |
inch | mm | |
| 012 | 0.5"-1.25" | 13-32 |
| 020 | 0.75"-1.75" | 19-44 |
| 024 | 1"-2" | 26-51 |
| 028 | 1"-2.25" | 26-57 |
| 036 | 1"-2.75" | 26-70 |
| 048 | 1.75"-3.05" | 45-89 |
| 056 | 1.75"-4" | 45-101 |
| 072 | 1.75"-5" | 45-127 |
| 088 | 1.75"-6" | 45-152 |
| 096 | 1.75"-6.5" | 45-165 |
| 104 | 1.75"-7" | 45-178 |
| 116 | 1.75"-7.75 | 45-197 |
| 128 | 1.75"-8.5" | 45-216 |
| 136 | 1.75"-9" | 45-228 |
| 152 | 1.75"-10" | 45-254 |
| 188 | 1.75"-12.5" | 45-311 |
| 232 | 1.75"-15" | 45-381 |
| 258 | 1.75"-16.5" | 45-413 |
| 288 | 1.75"-18.5" | 45-470 |
| 312 | 1.75"-20" | 45-508 |
